Parking Lot Lighting Layout Software
Parking lot lighting layout software uses area-light photometrics, pole positions, mounting heights and aiming to estimate light levels across a site. Lighting Studio helps sales teams explore a preliminary arrangement in the browser before detailed project review.
Use area lights on poles
A pole layout should use an area-light distribution intended for pole mounting. Wall-pack data belongs in a wall-mounted workflow, not on a parking lot pole.
Define the site and pole assumptions
- Calculation-area dimensions
- Pole locations and mounting heights
- Number of luminaires per pole
- Fixture orientation or rotation
- Selected area-light IES distribution
- Target criteria supplied by the project team

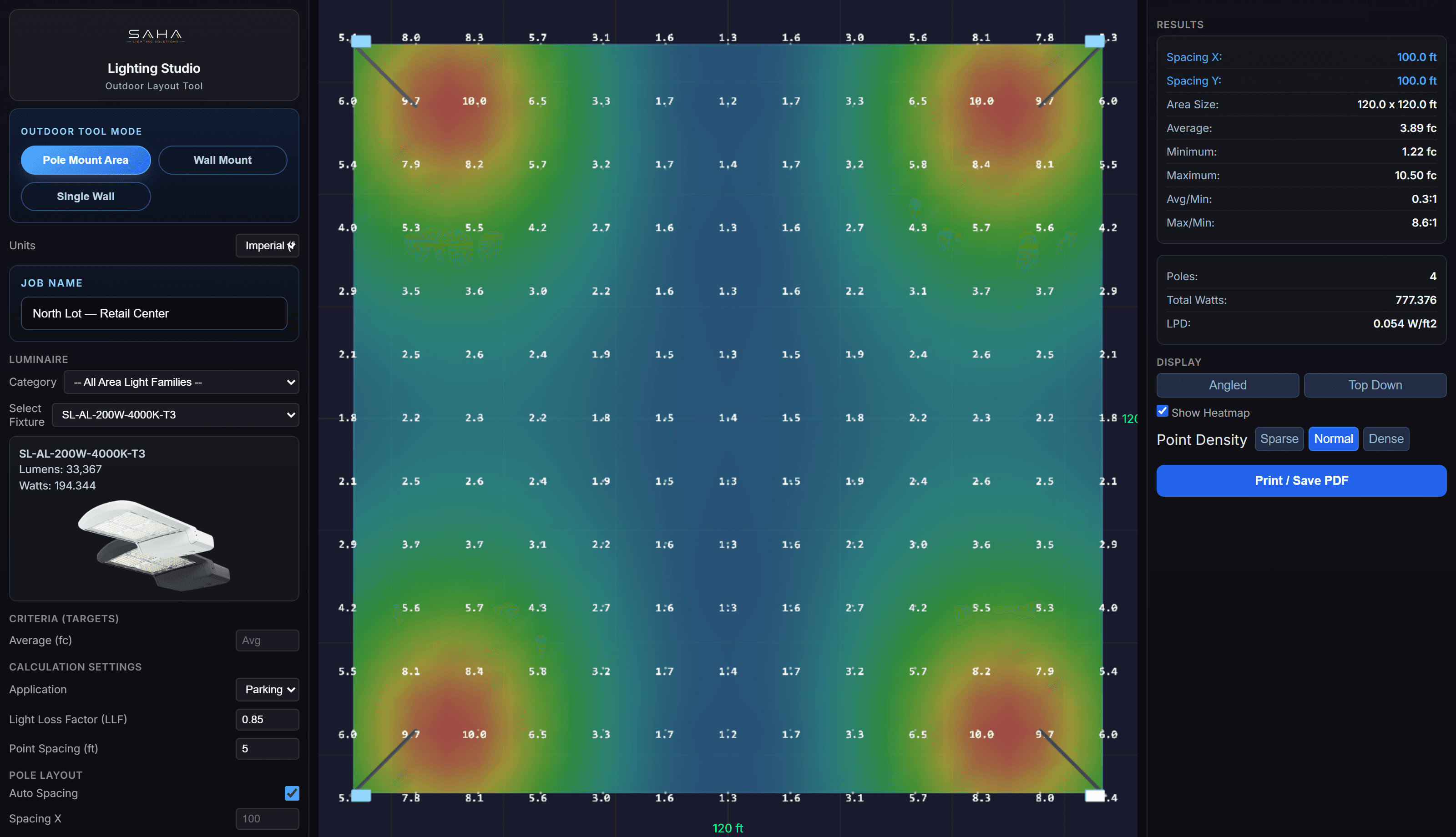

Review coverage across the entire grid
Inspect perimeter falloff, areas between poles, entrances and other project zones. A smooth-looking heatmap still needs numerical review at the individual calculation points.
Mounting height and orientation are linked
Changing pole height affects beam spread and intensity at the ground. Rotating or repositioning the fixture changes where the distribution lands. Recalculate after every material change.
Preliminary sales layout, not a permit set
Lighting Studio can support product selection and early layout conversations. Final parking lot design may need property-line review, glare, spill light, codes, controls, voltage, structural coordination and professional approval.
Frequently asked questions
Can I position individual poles?
Yes. The outdoor workflow supports pole placement, mounting height and area-light orientation for a preliminary site layout.
Should a wall pack be used on a pole layout?
No. Use the photometric file for the actual pole-mounted area light. Wall-pack distributions should be evaluated in the wall-mounted workflow.
Does Lighting Studio check every parking-lot code?
No. Project requirements and local rules require qualified review. Lighting Studio provides preliminary photometric estimates, not a code or permit guarantee.
